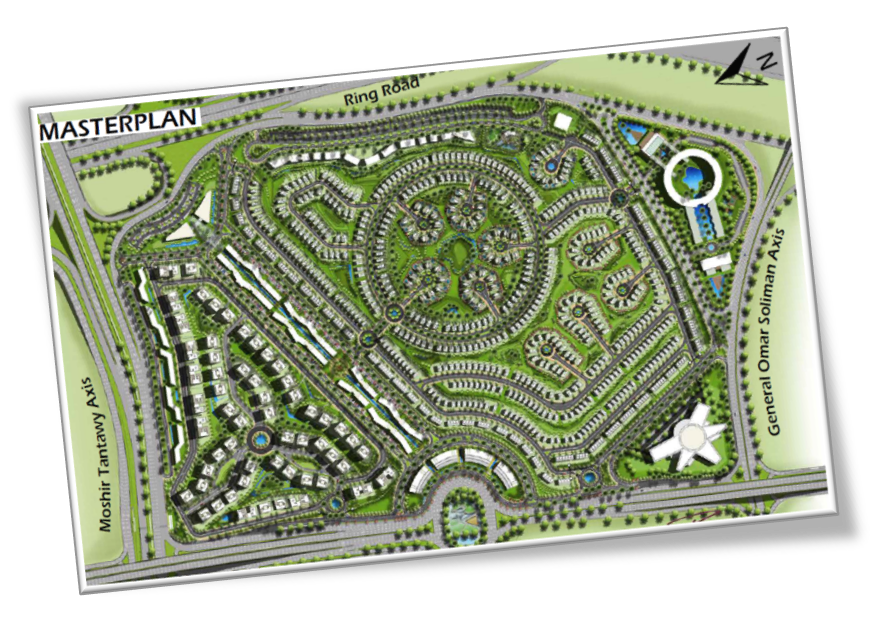

The Utility Infrastructures of Ayan Compound (250 Feddans or 105 Hectares)

Sewerage network 1: total length of 11 km and diameters ranging from 200 to 560 mm.

Sewerage network 2 : total length of 2 km and diameters ranging from 200 mm.

Storm Network 1 : total length of 6 km and diameters ranging from 200 to 600 mm.

Storm Network 2 : total length of 7 km and diameters ranging from 200 to 600 mm.

Water network: total length of 23 km and diameters ranging from 110 to 450 mm.

Irrigation network: lengths of 7 km and diameters ranging from 90 to 250 mm.

Firefighting Network: total length of 12 km and a diameter ranging between 110 and 250 mm.

Civil and Electromechanical Works: two stormwater reservoirs (one of capacity 2600 m3 and the other of capacity 4200 m³), a water and fire reservoir (7000 m³ capacity), and an irrigation reservoir (1100 m³ capacity).
